Rube Goldberg Machine: Pop a Balloon
How do you pop a balloon? It takes 13 steps, if you do it Rube Goldberg style. This was a super-deluxe school project that took 3 hours to set up yesterday afternoon in our garage/driveway, and the result was a very entertaining 17 seconds.
For a 4th grade project, my niece was required to create a Rube Goldberg machine that took at least 10 steps to pop a balloon. She enlisted the help of her grandpa (an engineer), who asked to use our Drenchinator 3000. (Check out our summertime soaking contraption here.) A Rube Goldberg machine is a “contraption, invention, device or apparatus that is deliberately over-engineered or overdone to perform a very simple task in a very complicated fashion, usually including a chain reaction.” (Thanks, Wikipedia!)
Here is how to pop a balloon:
(Ignore the child; he was not part of the machine. He just wanted to feel involved during the three hours of setup time.)
A- Car travels down ramp
B- Sets off dominoes
C- Dominoes disrupt lever

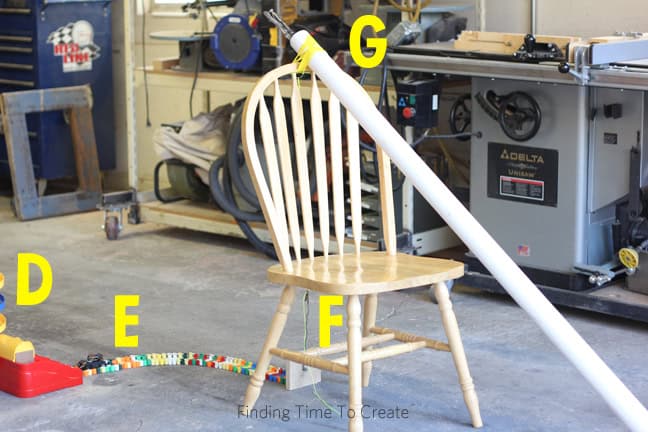

D- Lever releases ball down spiral ramp
E- Ball triggers electric car, which drives along track
F- Car bumps into wooden plate

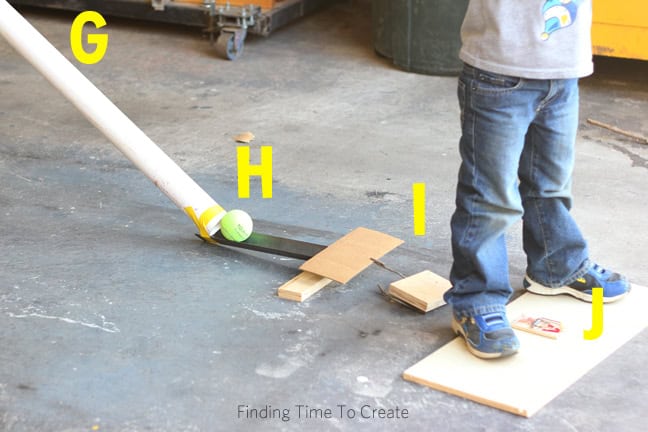

G- Wooden plate triggers ball to go down tube

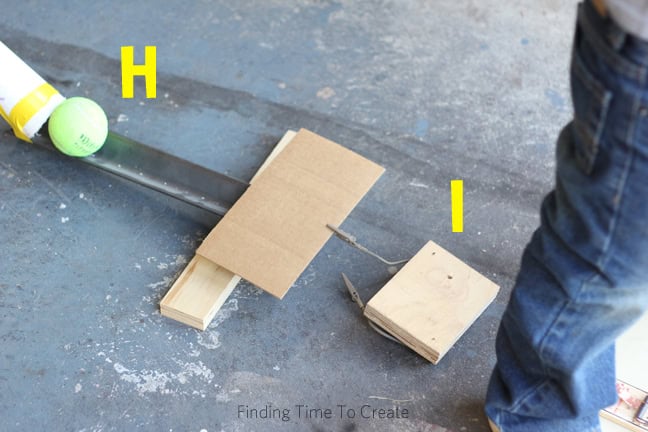

H- Ball hits another ball at end of tube, which travels on ramp
I- Ball releases spring-loaded cardboard, which flips

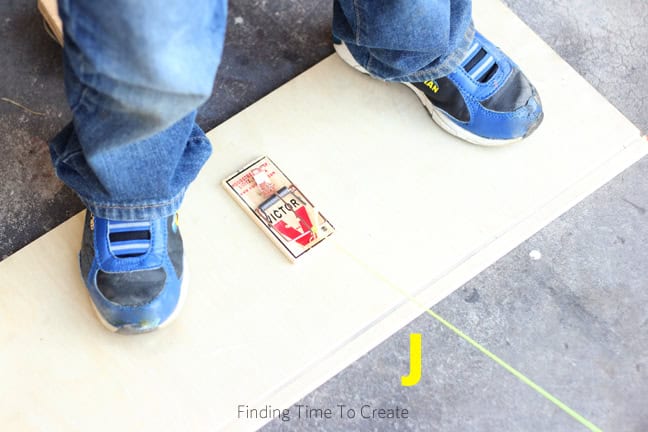

J- Cardboard triggers mousetrap, which pulls string

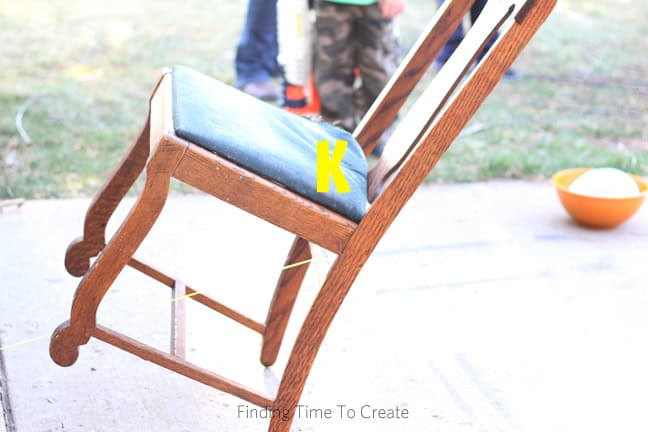

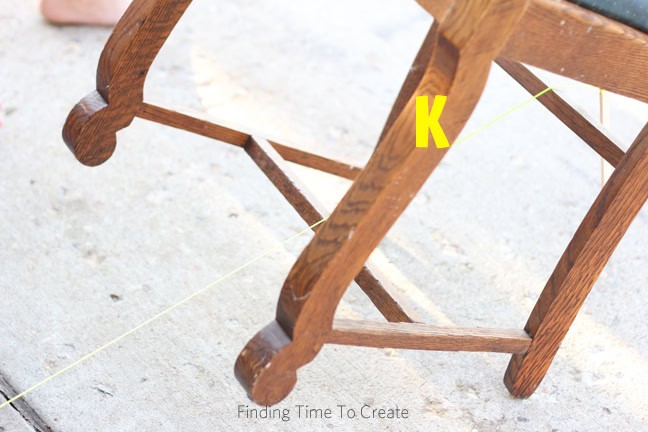

K- String releases balanced chair

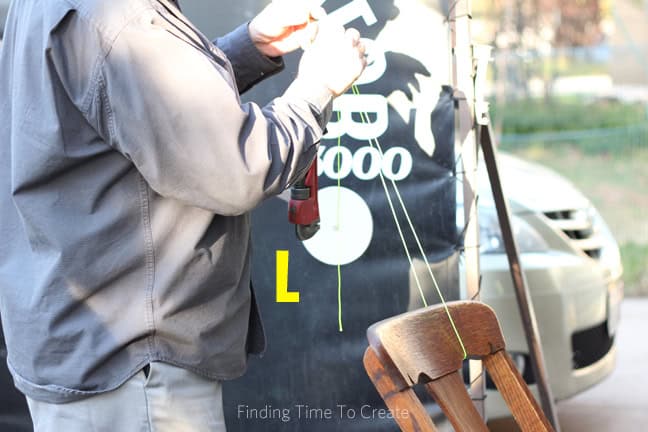

L- Falling chair triggers wrench to hit target on Drenchinator

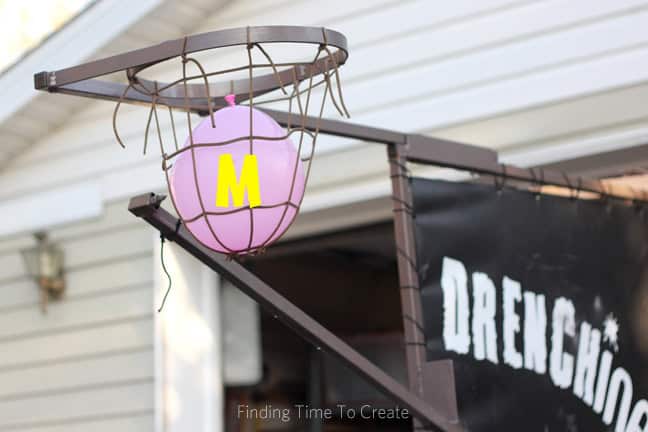

M- Target arm swings to pierce water balloon
N- Added bonus with popped balloon: children below it get soaked!
(I’m sorry I wasn’t able to get good still shots of the chair-wrench combination; by the time they were finishing this up and hadn’t even done a test run yet, I was running late for a meeting and I also didn’t want to make the crowd wait for me to take more pictures.)
We only ran this whole thing twice. Once as a test run to make sure it worked, and once for filming so the video could be submitted to the teacher. We had multiple devices capturing stills and video, and about 17 spectators. They started right after school around 4 p.m., recorded the video shown above a little after 7 p.m., and when I got home from my meeting at 8 p.m. it was all put away.
We were all pretty excited about the successful balloon-popping Rube Goldberg machine. Thanks for visiting!
